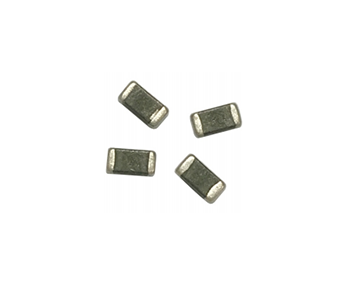

Features of SMD Multilayer Varistors MLV Metal Oxide Varistors MOV RL1206A Series
EIA size:1206
Variable capacitance
Operating voltage: 3.3Vdc ~385Vdc
High surge suppress capability
Bidirectional and symmetrical V/I characteristics
Multilayer ceramic construction technology
RoHS & Halogen Free (HF) compliant
Operating temperature range: -40 ~ ℃ +85℃
Storage temperature range: -40℃ ~ +125℃
Applications of SMD Multilayer Varistors MLV Metal Oxide Varistors MOV RL1206A Series
Used to Help Achieve Electromagnetic Compliance of End Products
Provides On-Board Transient Voltage Protection for ICs, CMOS and MOSFET
Suppression of Inductive Switching or Other Transient Events Such as EFT and Surge Voltage at the Circuit Board.
Protection of Components and Circuits Sensitive to ESD Transients Occurring on Power supplies, Control and Signal Lines.
The SMD Multilayer Varistors MLV Metal Oxide Varistors MOV RL1206A Series, also called Zinc oxide varistors, is a semiconductor voltage-limiting surge device made of zinc oxide as raw material at high temperature. It is widely used for its excellent nonlinear characteristics and strong surge absorption capacity. Overvoltage protection in electronic circuits, package: 1206, voltage range: 5～470V, can withstand surge energy of 0.08 ~ 0.1kA.
